‌Network Working Principle‌

‌Update Methods:‌
Content updates for in-vehicle products can be delivered via 4G, Wi-Fi, or USB drives.

‌Client Advertising Display Features:‌

00001. ‌Network Updates:‌ Updates content via wired/Wi-Fi/4G networks. The device checks for new download tasks upon connecting to the server. If updates exist, playback pauses to download new files, then resumes automatically.

00002. ‌Resumable Transfers:‌ If interrupted (e.g., power loss or signal loss), playback resumes with downloaded files after 30 seconds. Incomplete downloads resume from the breakpoint upon reconnection.

00003. ‌Smart Downloading:‌ Compares new tasks with existing content. Only downloads newly added files or deletes redundant ones without re-downloading unchanged content.

00004. ‌Scrolling Subtitles:‌ Supports real-time scrolling ticker messages for instant updates.

00005. ‌Group Control:‌ Manages multiple terminals simultaneously, each playing unique content.

00006. ‌Third-party Integration:‌ Compatible with station announcement systems (customizable protocols for RS485/CAN/RS232 signals).

‌Product Parameters:‌

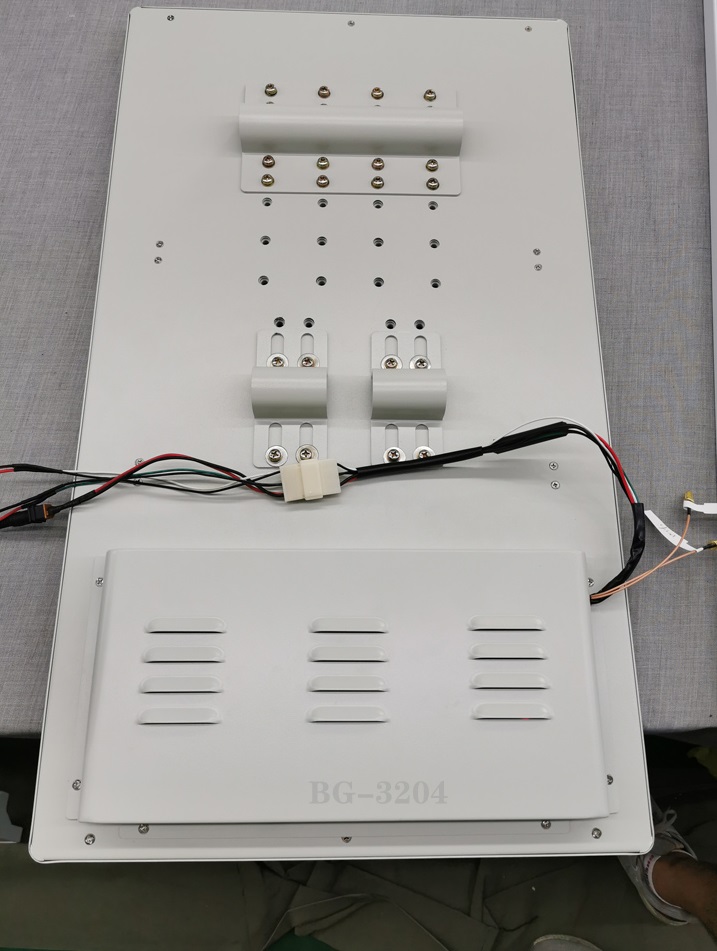

· Model: BUS3204

· Display: 32-inch TFT (9:16 aspect ratio)

· Resolution: 1080×1920

· Brightness: 350 cd/m²

· Contrast: 1000:1

· OS: Android (Rockchip RK3566 octa-core CPU, ARM Cortex-A9)

· RAM: 2GB DDR

· Storage: Default SD card playback; 1 USB port for system settings

· Network: 4G / Wi-Fi (802.11b/g, theoretical range 500m)

· Power: 24V (±5%)

· Audio: 2-channel 15W stereo amplifier

· Operating Temperature: -10°C to 60°C

· Supported Formats: AVI, MPG, MP3, JPEG, etc.

· Update Methods: USB/Wi-Fi/4G

‌Applications:‌

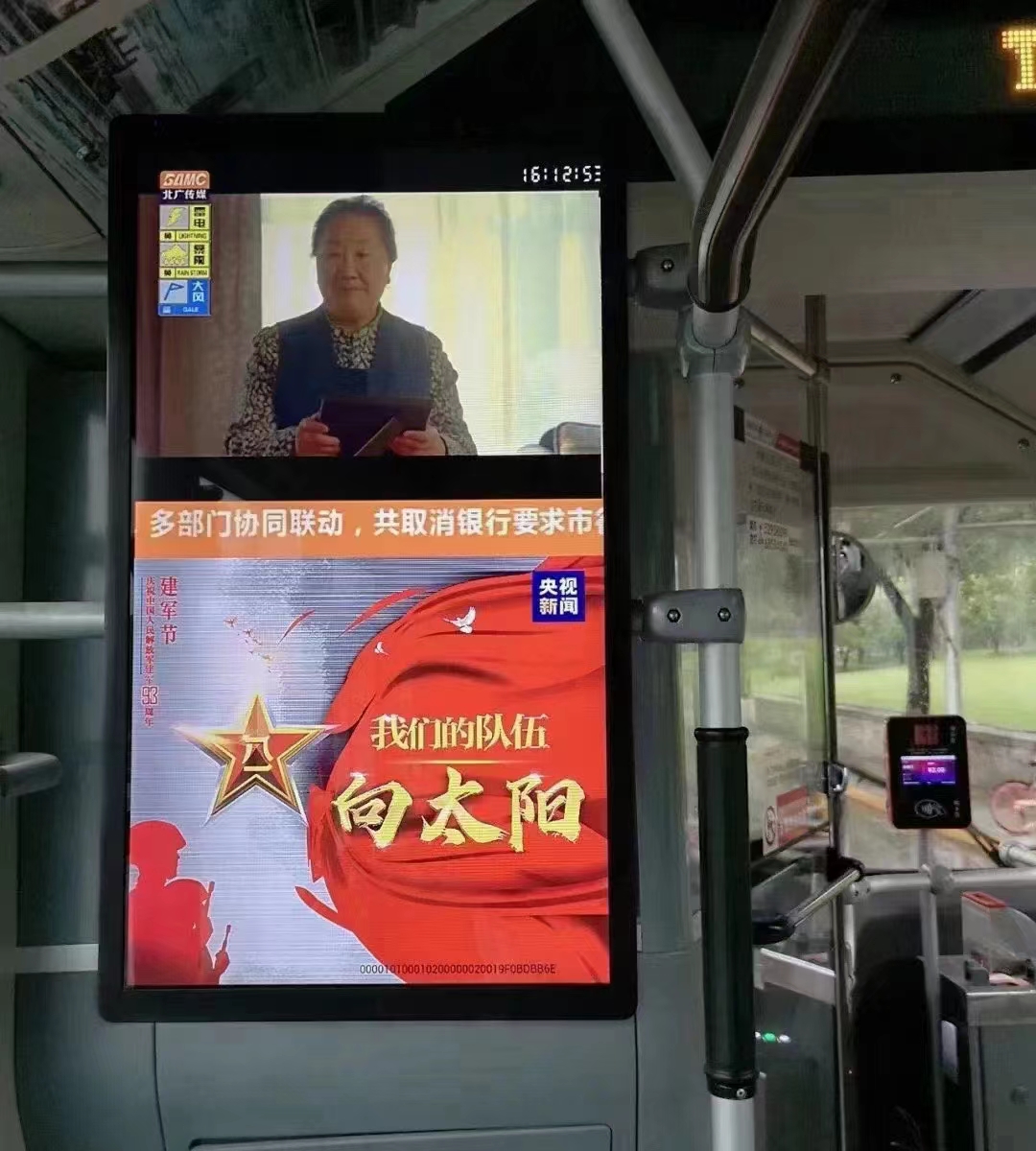

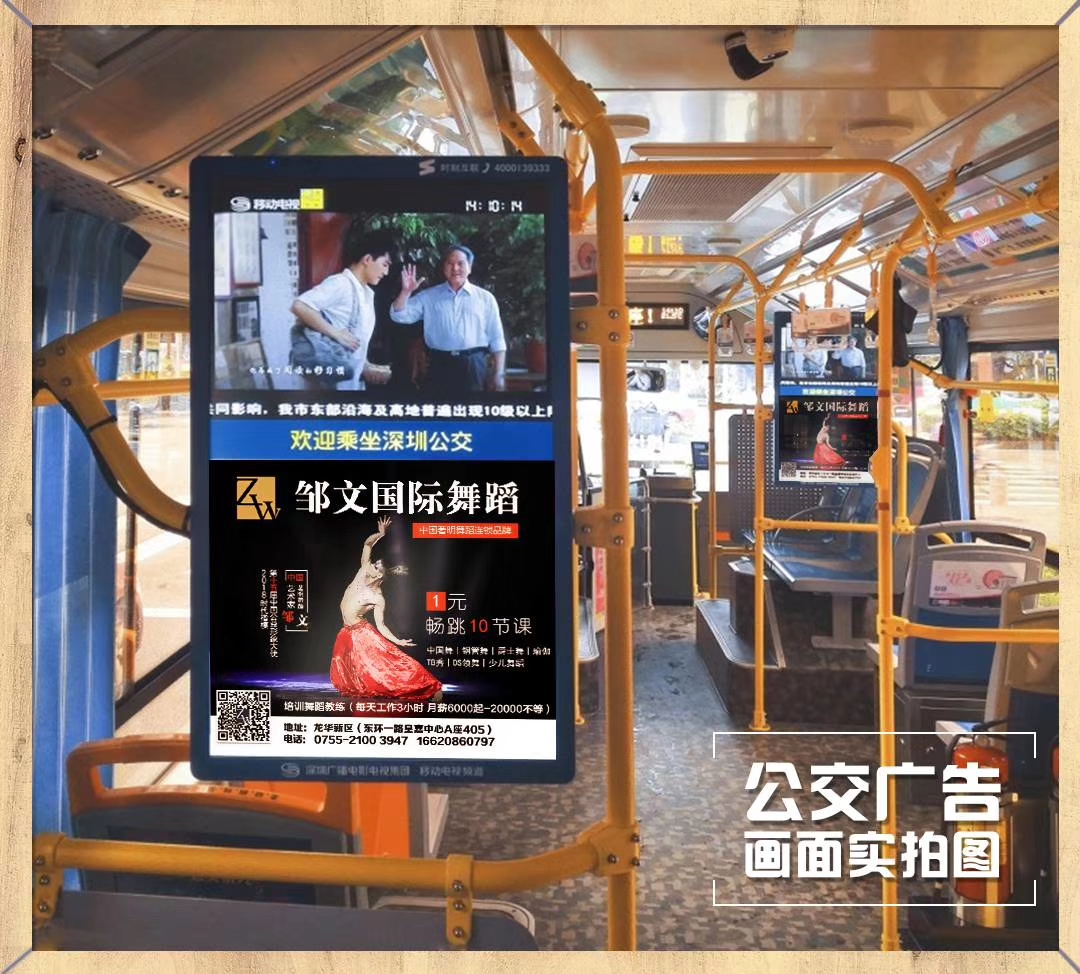

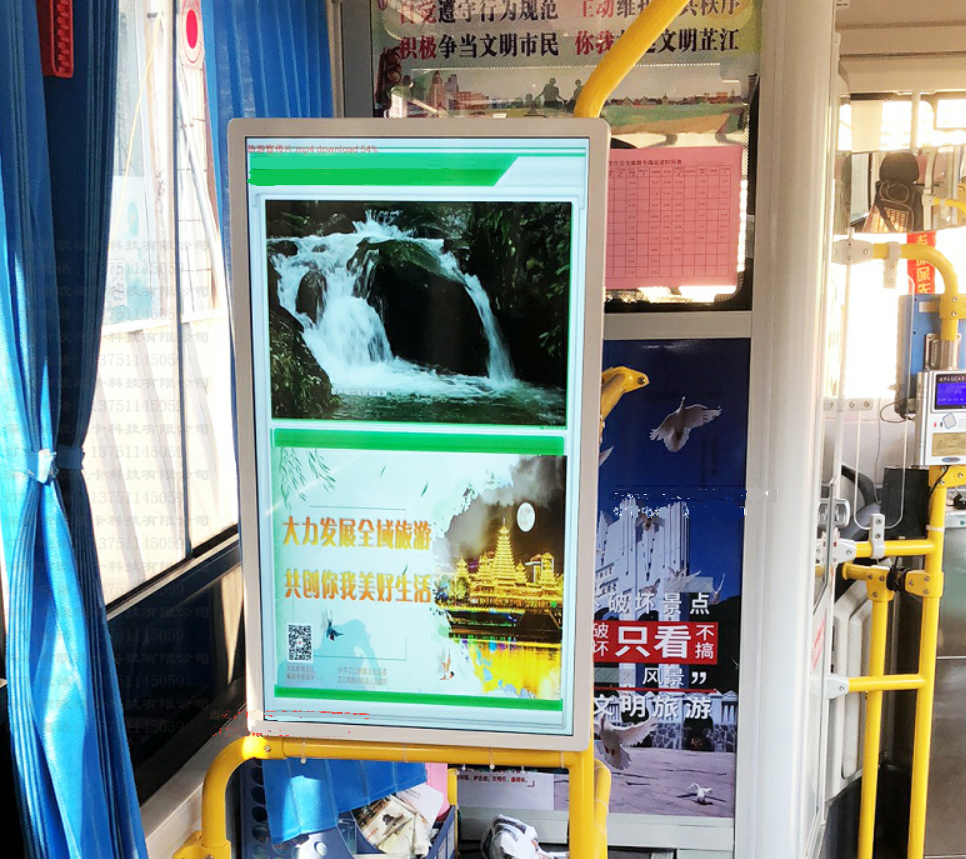

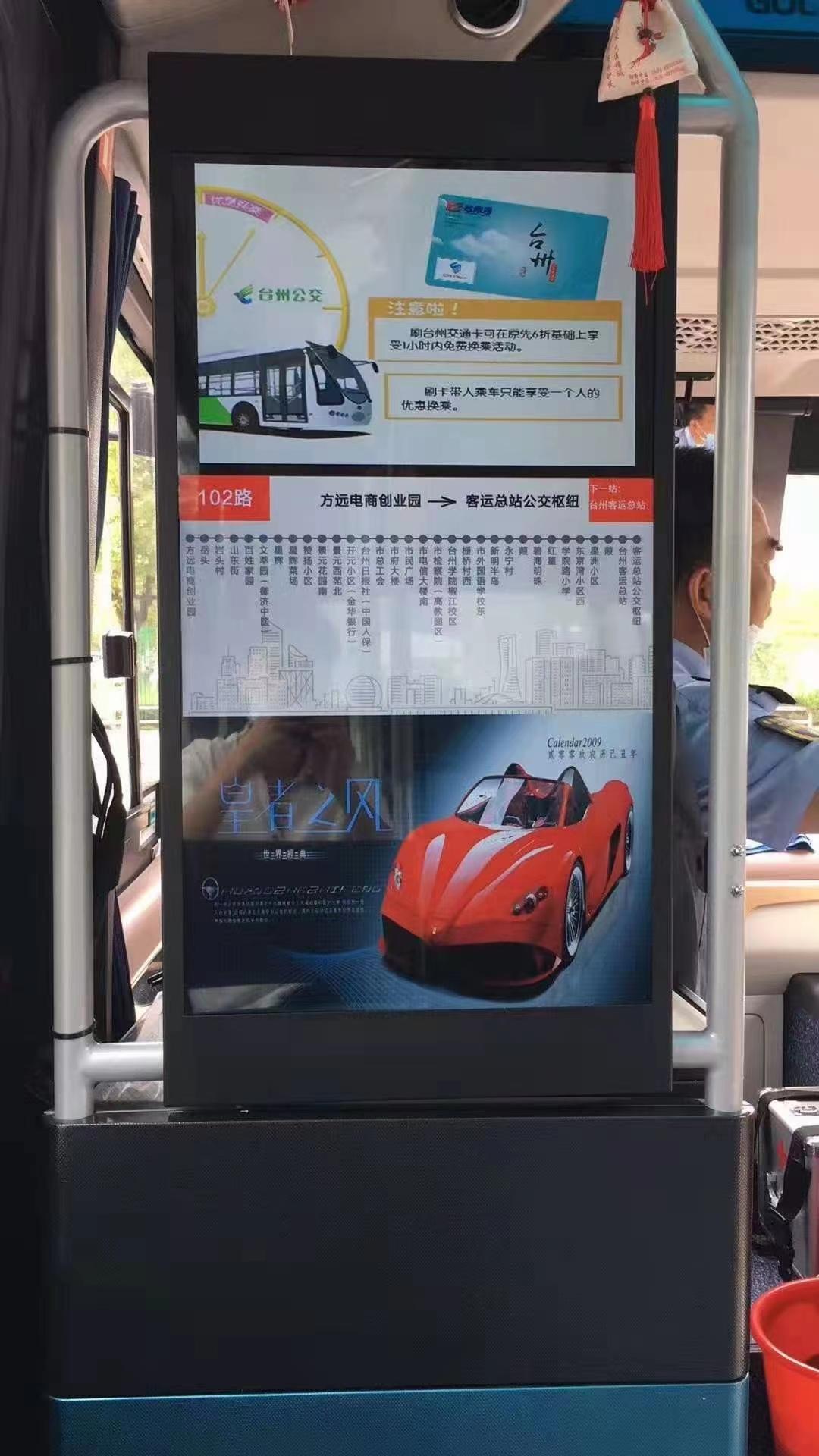

Widely used in public buses, tour coaches, subways, trains, etc., for commercial ads, public service announcements, and real-time information. Content updates via USB/SD card or remote control (Wi-Fi/4G).

‌Precautions:‌

00001. ‌Safety & Maintenance:‌

· Avoid liquids, heavy pressure, or impacts.

· Install on stable surfaces to prevent falls.

· Ensure ventilation slots are unobstructed.

· Do not expose to extreme heat/dust.

00002. ‌Screen Care:‌

· Clean with a soft cloth (no sprays/solvents).

· Avoid touching the screen with sharp objects.
